Xingtai Shineway Science & Technology company is a diversified carbon black company,focusing on Producing, R&D, innovating and marketing carbon black and Carbon Nanotubes(MWCNTS).
 |
SPECIFICATION
Item | Unit | Standard | ASTM Test Method |
Iodine Absorption Value | g/kg | 29±5 | ASTMD-1510 |
Oil Absorption Value | 10-5m3/kg | 72±5 | ASTMD-2414 |
Oil Absorption Value (Compressed) | 10-5m3/kg | 58-68 | ASTMD-3493 |
CTAB Absorption Surface Area | 103m2/kg | 26-38 | ASTMD-3765 |
STSA | 103m2/kg | 24-34 | ASTMD-6556 |
Nitrogen Absorption Surface Area | 103m2/kg | 25-35 | ASTMD-6556 |
Tint Intensity | % | —— | ASTMD-3266 |
Heating Loss | % | ≤1.5 | ASTMD-1509 |
Ash | % | ≤0.7 | ASTMD-1506 |
45μm Sieve Residue | mg/kg | ≤1000 | ASTMD-1514 |
500μm Sieve Residue | mg/kg | ≤10 | ASTMD-1514 |
Impurities | - | 无 | —— |
Content Of Fine Powder | % | ≤10 | ASTMD-1508 |
Decantation Density | kg/m3 | 490±40 | ASTMD-1513 |
300% Stretching Stress | Mpa | -3.7±1.5 | ASTMD-3192 |
INTRODUTION
Carbon Black N774 is also called Semi-reinforcing furnace-high modulus black of non-staining (SRF-HMNS). The compound filled with N774 has excellent processing property， and N774 can be used with high load. Its compound has high elongation, low heat-up， high elasticity and good aging-resistance.
APPLICATION

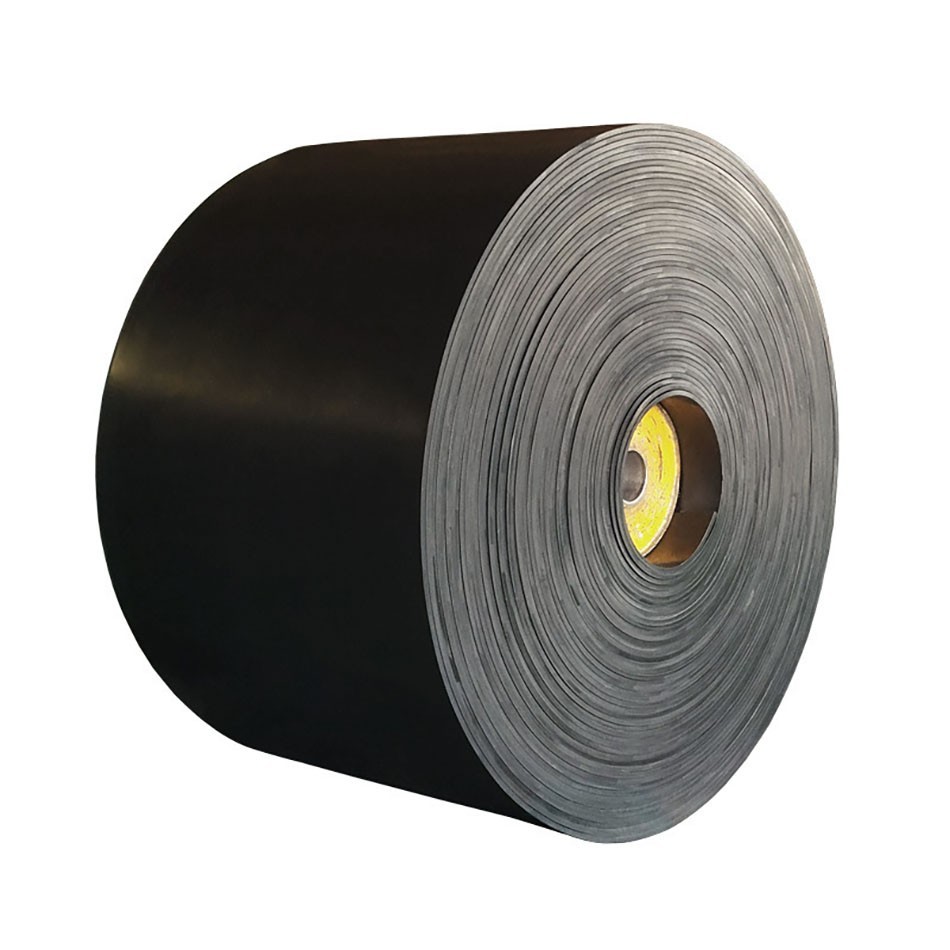

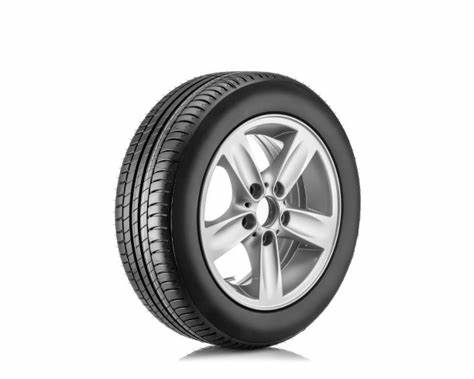

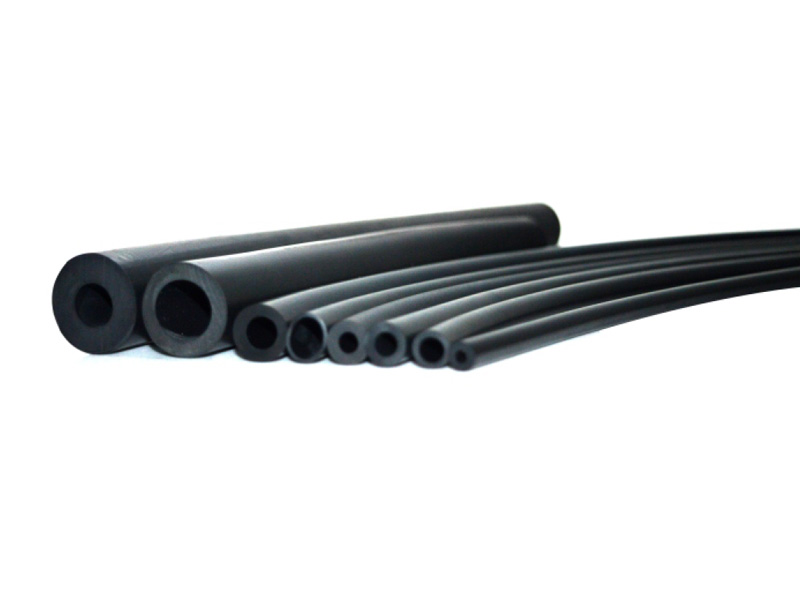

Compared with Semi-reinforcing furnace-low modulus black of non-staining (SRF-LMNS) such as N762 and N772， N774 has higher structure and higher light transmittance of toluene extract for about 95%, although they have the same surface area. Its main characteristics are low solvent extract and non-polluting. It's mainly used incompounds of tire cord, sidewall. inner tube, rubber hose, belt, etc.
SPECIFICATION
Item | Unit | Standard | ASTM Test Method |
Iodine Absorption Value | g/kg | 29±5 | ASTMD-1510 |
Oil Absorption Value | 10-5m3/kg | 72±5 | ASTMD-2414 |
Oil Absorption Value (Compressed) | 10-5m3/kg | 58-68 | ASTMD-3493 |
CTAB Absorption Surface Area | 103m2/kg | 26-38 | ASTMD-3765 |
STSA | 103m2/kg | 24-34 | ASTMD-6556 |
Nitrogen Absorption Surface Area | 103m2/kg | 25-35 | ASTMD-6556 |
Tint Intensity | % | —— | ASTMD-3266 |
Heating Loss | % | ≤1.5 | ASTMD-1509 |
Ash | % | ≤0.7 | ASTMD-1506 |
45μm Sieve Residue | mg/kg | ≤1000 | ASTMD-1514 |
500μm Sieve Residue | mg/kg | ≤10 | ASTMD-1514 |
Impurities | - | 无 | —— |
Content Of Fine Powder | % | ≤10 | ASTMD-1508 |
Decantation Density | kg/m3 | 490±40 | ASTMD-1513 |
300% Stretching Stress | Mpa | -3.7±1.5 | ASTMD-3192 |
INTRODUTION
Carbon Black N774 is also called Semi-reinforcing furnace-high modulus black of non-staining (SRF-HMNS). The compound filled with N774 has excellent processing property， and N774 can be used with high load. Its compound has high elongation, low heat-up， high elasticity and good aging-resistance.
APPLICATION
Compared with Semi-reinforcing furnace-low modulus black of non-staining (SRF-LMNS) such as N762 and N772， N774 has higher structure and higher light transmittance of toluene extract for about 95%, although they have the same surface area. Its main characteristics are low solvent extract and non-polluting. It's mainly used incompounds of tire cord, sidewall. inner tube, rubber hose, belt, etc.
